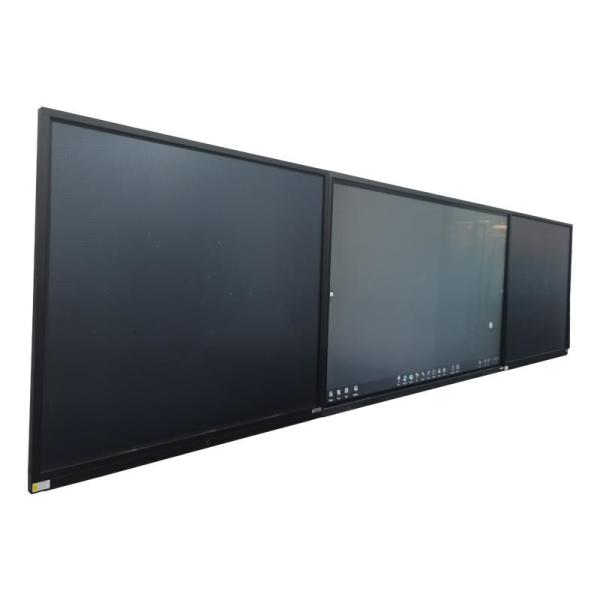

Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function

Product Categories
Xingyicheng (Shenzhen) Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function

Screen Size : 86 inch

Chromaticity : 1.07B

Panel type : 4K UHD LED panel

Refresh frequency : 60Hz

Viewing angle : 178°(H) / 178°(V)

Interface Type : D-SUB, Serial, usb

Brightness uniformity : 75%

Color Gamut : 85% NTSC

Visible area : 1895.04 * 1065.96 mm

Pixel Pitch : 0.4935 * 0.4935 mm

Life : ≥ 30,000 (hrs)

Brand Name : MTHGH

Model Number : XYC-86

Certification : CE FCC

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000 Piece

Delivery Time : 7-10 Work Days

Overall brightness : ≥ 50cd/m²

Response time : ≤ 8ms (typ.)

Operating System : Window, Android, Mac, Linux

Packaging Details : Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.

Aspect Ratio : 16:9

Screen Contrast : 1200:1(Typ.)-Hard Screen 4000:1(Typ.)-Soft Screen

Resolution : 3840*2160

Backlight Type : D-LED

Contact Now

Interactive Smart Digital Blackboard IFP 86 Inch Screen Touch System
86 Inch 4K 3840 x 2160 P Display
CSOT / BOE / LG Grade A+ Panel Glass
178° / 178° Ultra-Wide View Angle
Dual Nano Wings Chalk & Marker Boards
Product Overview

The IFP 86 Inch Multi Smart Digital Blackboard is a modern educational station that merges ultra-high-definition display engineering with capacitive touch technology to transform traditional classroom dynamics. Featuring an expansive 86-inch 4K D-LED central screen flanked by magnetic nano sub-boards, it delivers an intuitive platform for interactive lectures and collaborative group work.

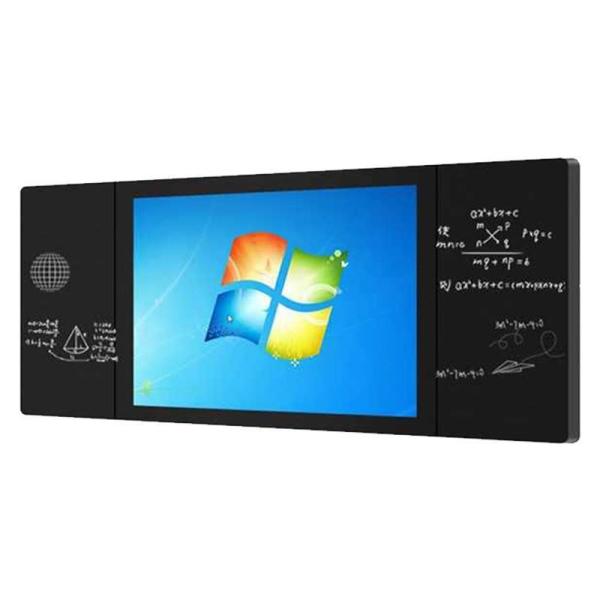

Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function
Key Features
Resource Hub
Online Teaching Library

High-speed LAN/Wi-Fi connectivity allows educators to download courseware and stream live educational media.

Interactivity
Multi-Point Touch Panel

Direct screen annotation, digital map marking, and real-time student interaction without latency.

Multimedia
Audiovisual Playback

Integrated stereo sound drivers and D-LED backlighting supporting 1.07B colors and HDR processing.

Control
One-Touch Switching

Effortlessly adjust screen brightness, toggle signal inputs, or transition between Windows and Android environments.

  • Rich Teaching Resources: Internet connectivity allows teachers to download and share courseware and educational applications.
  • Enhanced Interactivity: Students participate directly in lessons through multi-touch screen tools and annotation widgets.
  • Multimedia Support: Comprehensive media playback including 4K video, audio streams, and interactive educational animations.
  • Convenient Operation: Quick signal switching, anti-blue-light filtering, and real-time cloud collaboration tools.

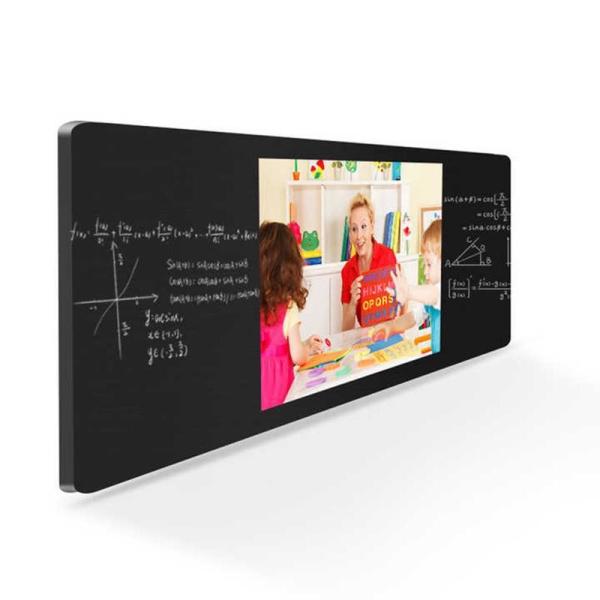

Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function
Display Specifications
Parameter Specification Value
Screen Size 86 Inch Central D-LED Panel
Panel Manufacturer CSOT / BOE / LG Grade A+ Glass
Visible Display Area 1895.04 x 1065.96 mm
Resolution 3840 x 2160 P (4K Ultra HD)
Aspect Ratio 16:9 Widescreen
Overall Brightness ≥ 350 cd/m² [typical]
Brightness Uniformity 75% Uniform Luminance
Screen Contrast Ratio 1200:1 (Hard Screen) / 4000:1 (Soft Screen)
Response Time ≤ 8 ms (typical)
Pixel Pitch 0.4935 x 0.4935 mm
Refresh Frequency 60 Hz
Viewing Angles 178° (Horizontal) / 178° (Vertical)
Panel Lifespan ≥ 30,000 Hours Continuous Operating Life
Color Gamut & Chromaticity 85% NTSC, 1.07 Billion Colors (10-bit)
Eye Protection & Backlight Hardware Net Blue Light Filter & D-LED Backlight
Left & Right Sub Boards
Category Specification Details
Sub Board Surface Type Nano Honeycomb Matte Blackboard (Supports Dustless Chalk & Magnetics)
Sub Board Color Matte Black Non-Reflective Surface
Board Quantity Left Sub-Board x 1, Right Sub-Board x 1
Physical Dimensions (1108 x 1240.35 x 94) mm per side board
Chalk Trough Full-Length Lower Storage Trough Supported
Safety Corners Rounded ABS Protective Safety Corners
Applications & Classroom Impact

The interactive smart digital blackboard plays a central role in modern education. By enabling teachers to blend classic chalk writing on magnetic nano wings with 4K touch-screen interactivity, students remain actively involved throughout lessons. Dual OS support allows seamless execution of specialized software in both Windows and Android environments.

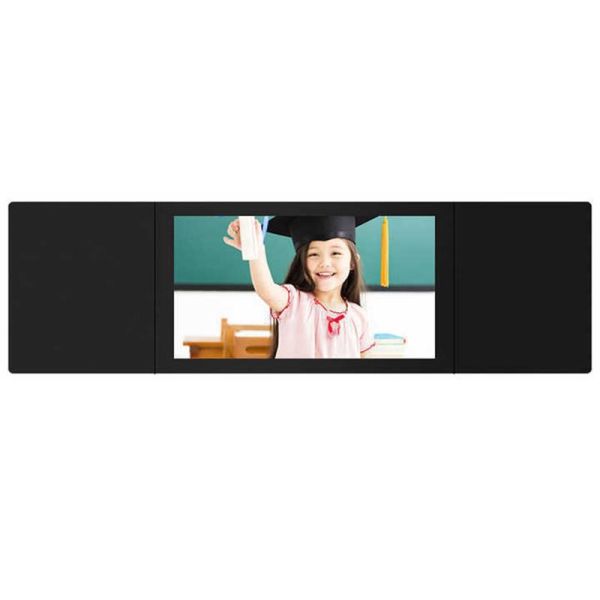

Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function
Frequently Asked Questions
What glass panel brands are utilized in the 86-inch display?
We utilize Grade A+ D-LED panels sourced directly from premier manufacturers including CSOT, BOE, and LG, delivering 3840x2160 4K UHD resolution and 178° wide viewing angles.
How do the left and right sub-boards function?
The flanking sub-boards are built with nano-honeycomb matte black surfaces that support traditional dustless chalk, liquid markers, and magnetic teaching aids while protecting against glare.
Does the 86-inch Smart Blackboard support dual operating systems?
Yes, the system seamlessly supports dual OS functionality, enabling teachers to switch between Windows and Android environments with a single touch.
What eye-protection features are built into the display?
The display includes hardware-level Net Blue Light filtering and anti-flicker D-LED backlighting to protect student vision during prolonged classroom sessions.
Product Gallery & Synchronized Devices
Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function

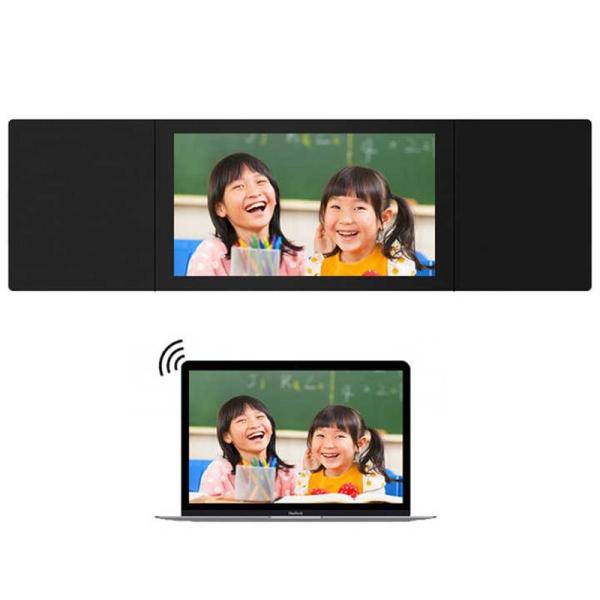

Synchronized Screen Mirroring
Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function
Interactive Classroom Collaboration
Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function

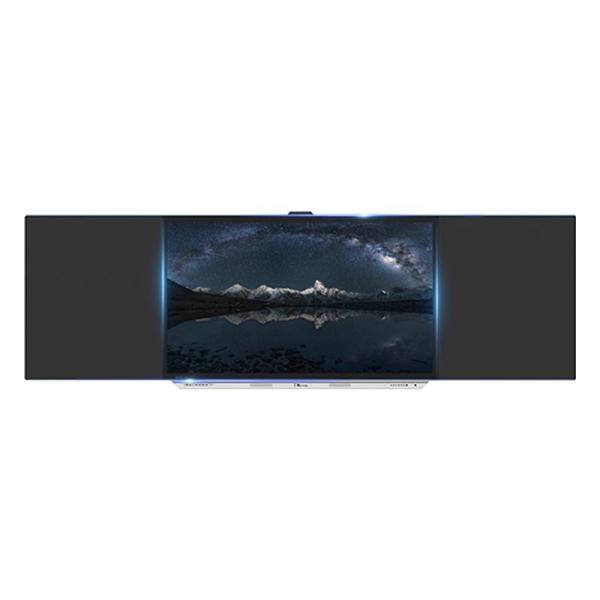

4K Display Panel Clarity Test
